Product Number

WSD -2830-V1.0

Product Name

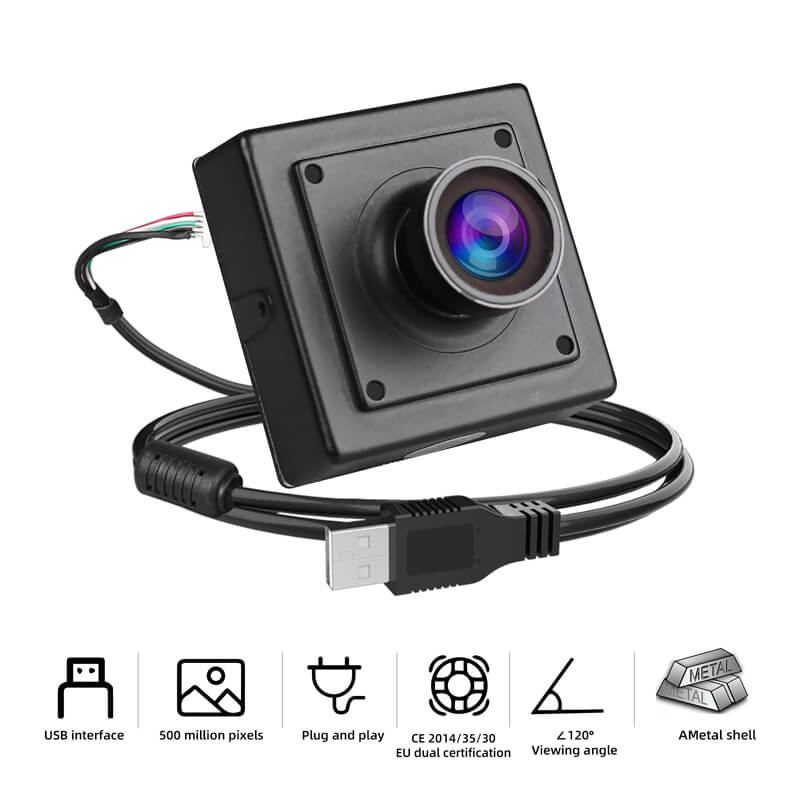

USB Camera Module

Interface

USB 2.0 interface driver free (Standard UVC protocol)

Pixel

2MP（16：9）

Sensitivity size

1/2.7 inch cmos OV Chip

Module Size

38*38mm

Focus Method

FF(Manual Focus)

Lens

3.6/2.8mm/4.2mm/6mm/Wide Angle 150°/wide angle 180° etc……

Voltage

USB 5V

Audio

With dual microphone

Wide Angle

Hardware wide dynamic 120db (backlighting effect is better than digital wide dynamic)

Vision Function

Can add white light or infrared light

Image distance

1cm—∞

Resolution

1920*1080/1280*720/640*820

Line length

1m（2m/3m/4m/5m option）

Frame rate

30fps

Output Format

MJPG/YUY2

Camera control

Saturation, contrast, sharpness

Software Compatibility

WinXP/Win7/Win8/Win10/Windows Wista Macosx/Linux/ubuntu/Android 4.0 above/Raspberry pie(Support UVC protocol)

Current

＜300ma

Operating Temperature

0°—+60°
